Installation

PyJEM supports Anaconda or Miniconda environments.

1.Miniconda


For users experienced with Python, the recommended way to install PyJEM with Miniconda. Miniconda provides a very compact development environment using python. You can create a virtual environment on Miniconda. therefore, if you can download a recomend virtual environment file from Forum, you can easiest make a recommendate virtual environment.

2. vjem (virtual env)


vjem is a recommendate virtual python environment. PyJEM supports multiple python versions, so please download the environment you wish to use from Forum.

ex) The following are the installation steps for vjem38.

2.1. Open the Forum page. Click the vjem38.yml link.

ed9734e6736042cebb09af16dd783750

2.2. Download the yml file

8978a661bb8d4f088a37407f6f86bbad

2.3. Execute the following on the command line

conda create -f vjem_yml

vjem_yml is yml file’s absolute path that has downloaded.

2.4. Confirm the vjem has been created.

> conda activate vjem38
(vjem38) >

If there is no error in activate, the environment has been successfully built.

3.PyJEM install


These are the steps for installing PyJEM for the first time. Here are the steps to follow VEM1342-11 and later.

※ If you are using VEM1342-07 - VEM1342-11, please click this link.

477a6966adda449aadf391743903a903

3.1.Select the virtual environment

Select the python virtual environment name to install the PyJEM library in the combo-box. ※ If the virtual environment name don’t exist in box-list, please input the virtual environment name.


3.2.Check “Default” button

53dc62165d944528acdb5d07fa0a7258

3.3.Click the install button

When click the “Install” button, start the install method and output the install process message.

f1fcbf1059b146148521157d36c3074b

4.PyJEM update


It is installer to upgrade/downgrade the PyJEM library. please download the PyJEM.zip from the Forum.

※ If you are using VEM1342-07 - VEM1342-11, please click this link.

4.1.Select the virtual environment

Select the python virtual environment name to install the PyJEM library in the combo-box. ※ If the virtual environment name don’t exist in box-list, please input the virtual environment name.


4.2.Select PyJEM package.

b8662e538f0b47099dfea756a1611067

[…] button ⇒ Install any version downloaded from the Forum.

4.3.Click the install button

When click the “Install” button, start the install method and output the install process message.

d212ec7243254af4a070fd5d7ca3adb0

Appendix

This version of the installer has no UI. Installation is only vjem35, vjem37, and vjem38 installations.

12a224580ea94a29b9d3013ebbf981fa

Install


3.1.run as administrator setup.bat

Update


Install any version downloaded from the Forum.

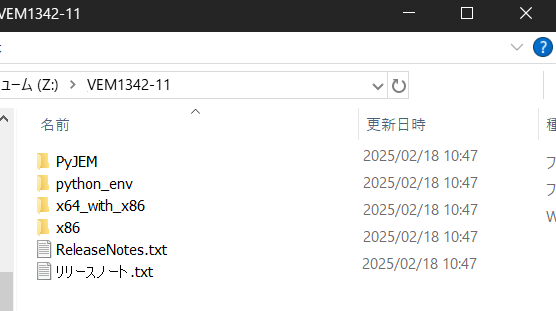

4.1.start cmd 4.2.activate virtual environment 4.3.mount media on any drive. Mount the iso configured on the media on any drive.

0588c9ba0ce94443bcce9bd79f58e8c4

4.4.change directory change directory to 3. PyJEM folder.

4.5.run updater.exe Update the PyJEM using the updater.exe configured in media.

Example vjem38

(vjem38) Z:/VEM1342-11/PyJEM>media/updater.exe -l media/library/LICENSE_KEY -p C:/Users/JEOL/Downloads/PyJEM.zip

Arguments - -l: License file path - -p: Downloaded PyJEM file
