FEMTUS: worksheet / repository

This tutorial explains the data structure of the FEMTUS worksheet and how to access each layer.

Worksheet structure

The worksheet data is organized in a hierarchical structure:

worksheet
  └─ element (per measurement result)
       └─ content (ImageContent / GraphContent)
            └─ dataset
                 └─ clump  (raw numeric array)

Each layer is accessed by its Id and a corresponding function:

Layer	Access function	Key to next layer
worksheet (list)	get_worksheets()	[n]["Id"] → worksheet Id
worksheet	get_worksheet(worksheet_id)	["Children"][n]["Id"] → element Id
element	get_worksheet_element(element_id)	["ContentSummary"]["Id"] → content Id
content	get_image_content(content_id) / get_graph_content(content_id)	["Children"][n]["Id"] → dataset Id
dataset	get_data_set(dataset_id)	["Clump"]["Id"] → clump Id
clump	get_clump(clump_id)	—
raw bytes	get_clump_num_array_accessor(clump_id)	—

Note

FEMTUS service must be running before executing any cell.

from PyJEM.femtus import worksheet, repository

1. Worksheet

get_worksheets() returns a list of all worksheets.
Each worksheet has an Id and a Children list of element references.

Function	Description
get_worksheets()	Get all worksheets
get_worksheet(worksheet_id)	Get a single worksheet by Id

# Get all worksheets
worksheets = worksheet.get_worksheets()
print("worksheet count:", len(worksheets))

# Pick the first worksheet and display its Id and Children count
ws = worksheets[1]  # [0] is the "Live" sheet.
worksheet_id = ws["Id"]
children = ws.get("Children", [])
print("worksheet_id:", worksheet_id)
print("element count:", len(children))

print("# Worksheet detail")
ws

worksheet count: 2
worksheet_id: 6d33305e-8d86-4867-917f-7d959c3398bb
element count: 7
# Worksheet detail

{'Id': '6d33305e-8d86-4867-917f-7d959c3398bb',
 'Title': 'tutorial_sheet',
 'Children': [{'Id': 'bd56ca45-7c58-4584-8ec6-beac308371c2',
   'Title': 'HAADF_20260403_1411'},
  {'Id': '8bbacf87-31fe-434f-98a2-97d7098a945f',
   'Title': 'HAADF_SelectedArea_20260403_1411'},
  {'Id': '80051f5e-2480-4612-ae21-b1f9e2c1957a',
   'Title': 'EELS Line_20260403_1411'},
  {'Id': 'f54e6008-d36e-4f9a-a2ce-377fa9848b76',
   'Title': 'WholeSpectrum_EELS Line_20260403_1411'},
  {'Id': '32b63852-2a7b-4d4d-b3e6-9999b32cc107',
   'Title': 'HAADF_20260403_1441'},
  {'Id': 'fd254d91-a51d-4eae-af32-122543a8e23f',
   'Title': 'HAADF_SelectedArea_20260403_1441'},
  {'Id': '41722e14-13e7-40cc-995f-f2a4e563b1aa',
   'Title': 'EELS Line_20260403_1441'}]}

2. Element

A worksheet holds a list of elements in ["Children"].
Pass an element Id to get_worksheet_element() to retrieve its detail, including its ContentSummary.

Function	Description
get_worksheet_element(element_id)	Get element detail
Key ["ContentSummary"]["Id"]	Id of the content (image or graph)
Key ["ContentSummary"]["ContentType"]	Type of the content (ImageContent or GraphContent)
Key ["Title"]	Display title of the element

ContentType is used in 3 to select the appropriate access function for the content.

# Use the worksheet_id obtained in 1
ws_detail = worksheet.get_worksheet(worksheet_id)
element_ref = ws_detail["Children"][0]          # first element reference
element_id = element_ref["Id"]

# Get element detail
element = worksheet.get_worksheet_element(element_id)
print("element title:", element.get("Title"))
content_id = element["ContentSummary"]["Id"]
print("content_id:", content_id)
print("ContentType:", element["ContentSummary"]["ContentType"])

print("# Content detail")
element

element title: HAADF_20260403_1411
content_id: fc23c92c-31c5-46e5-b0ba-e21e9d5ef185
ContentType: ImageContent
# Content detail

{'Id': 'bd56ca45-7c58-4584-8ec6-beac308371c2',
 'Title': 'HAADF_20260403_1411',
 'IsActive': False,
 'IsEdited': True,
 'IsLive': False,
 'ContentSummary': {'Id': 'fc23c92c-31c5-46e5-b0ba-e21e9d5ef185',
  'ContentType': 'ImageContent'}}

3. Content (Image / Graph)

Each element contains one content: either an ImageContent or a GraphContent.
The content holds a Children list of dataset references.

ContentType	Function
ImageContent	get_image_content(content_id)
GraphContent	get_graph_content(content_id)

The next dataset Id is obtained from content["Children"][n]["Id"].

# Use the content_id obtained in 2
content_type = element["ContentSummary"]["ContentType"]

if content_type == "ImageContent":
    content = worksheet.get_image_content(content_id)
else:
    content = worksheet.get_graph_content(content_id)

dataset_id = content["Children"][0]["Id"]
print("content_type:", content_type)
print("dataset_id:", dataset_id)

print("# Content detail")
content

content_type: ImageContent
dataset_id: 994ae97d-fb0b-4b17-b0ba-2eee53e4154b

4. Dataset

get_data_set(dataset_id) returns metadata and a reference to the clump.

The clump Id is in dataset["Clump"]["Id"].
Calibration information (offset, scale, unit) is in dataset["Clump"]["Information"]["MeasurementInformation"]["CalibrationCoefficients"].

Key	Description
["Clump"]["Id"]	Id of the raw data clump
["Clump"]["Information"]["DataInformation"]["Dimensions"]	Shape of the array
["Clump"]["Information"]["MeasurementInformation"]["CalibrationCoefficients"]	Axis calibration (offset, scale, unit)

# Use the dataset_id obtained in 3
dataset = worksheet.get_data_set(dataset_id)
clump_id = dataset["Clump"]["Id"]
dimensions = dataset["Clump"]["Information"]["DataInformation"]["Dimensions"]
calib = dataset["Clump"]["Information"]["MeasurementInformation"]["CalibrationCoefficients"][0]

print("clump_id:", clump_id)
print("dimensions:", dimensions)
print("calibration:", calib)

print("# Data set detail")
dataset

clump_id: fe812832-11b6-424e-aa69-17814371ec62
dimensions: [512, 512]
calibration: {'Scale': 14.6875, 'Offset': 0, 'Unit': 'Nanometer'}

5. Clump

A clump holds the actual measurement data as a numeric array.

• get_clump_num_array(clump_id) — returns array shape and type metadata

• get_clump_num_array_accessor(clump_id) — returns the raw bytes of the array

Function	Returns
get_clump_num_array(clump_id)	dict with Dimensions, ElementType, etc.
get_clump_num_array_accessor(clump_id)	bytes — raw numeric data

import numpy as np

# Array shape and type metadata
array_info = worksheet.get_clump_num_array(clump_id)
print("array info:", array_info)

# Raw bytes → NumPy array
raw_bytes = worksheet.get_clump_num_array_accessor(clump_id)
total_elements = 1
for d in array_info["Dimensions"]:
    total_elements *= d

dtype_map = {1: np.uint8, 2: np.uint16, 4: np.float32, 8: np.float64}
bytes_per_element = len(raw_bytes) // total_elements
dtype = dtype_map.get(bytes_per_element, np.float32)

narray = np.frombuffer(raw_bytes, dtype=dtype).reshape(array_info["Dimensions"])
print("shape:", narray.shape, "dtype:", narray.dtype)

array info: {'ElementType': 'UInt16', 'Dimensions': [1, 512, 512], 'ElementCount': 262144, 'MemoryLoadableSize': 524288, 'WholeSize': 524288, 'ElementSize': 2, 'IsEdited': True}
shape: (1, 512, 512) dtype: uint16

import matplotlib.pyplot as plt

display = narray.squeeze()  # remove size-1 dimensions

if display.ndim == 1:
    # Spectrum / profile
    offset = calib["Offset"]
    scale = calib["Scale"]
    unit = calib["Unit"]
    axis = offset + scale * np.arange(len(display))
    plt.figure()
    plt.plot(axis, display)
    plt.show()

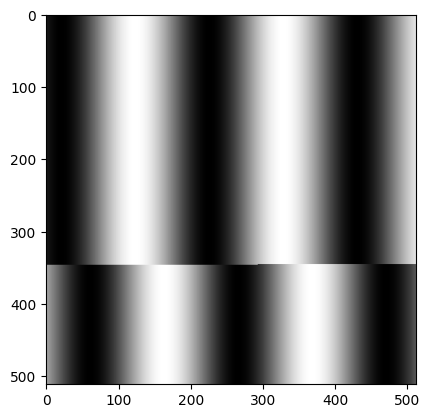

elif display.ndim == 2:
    plt.imshow(display, cmap="gray")
else:
    # 3D or higher: collapse spectral axis and show as 2D
    img2d = display.sum(axis=-1)
    plt.imshow(img2d, cmap="gray")

Repository: saving and loading worksheets

The repository package provides functions to save and load worksheet data as files.

Sheet: save / load a worksheet

A worksheet can be saved as a .jfw file and reloaded later.

Function	Description
can_write_plainsheet(worksheet_id, path)	Check whether the worksheet can be saved
write_plainsheet(worksheet_id, path)	Save the worksheet to a .jfw file
read_plainsheet(path)	Load a worksheet from a .jfw file

Warning

Loading a worksheet file that is already open in FEMTUS will result in an error.

plain_sheet_path = "C:/tmp/tutorial_sheet.jfw"

# Check if the worksheet can be saved
can_write = repository.can_write_plainsheet(worksheet_id, plain_sheet_path)
print("can_write:", can_write)

if can_write.get("Result"):
    # Save the worksheet
    repository.write_plainsheet(worksheet_id, plain_sheet_path)
    print("write_plainsheet: done →", plain_sheet_path)

    # # Load the worksheet from file
    # loaded = repository.read_plainsheet(plain_sheet_path)
    # print("read_plainsheet:", loaded)

can_write: {'Result': True}
write_plainsheet: done → C:/tmp/tutorial_sheet.jfw

Element: save / load a single element

A single element (one measurement result) can be saved as a .jh5 file.

Function	Description
write_worksheet_element(element_id, path)	Save the element to a .jh5 file
read_worksheet_element(path)	Load an element from a .jh5 file

Warning

Loading a worksheet file that is already open in FEMTUS will result in an error.

element_path = "C:/tmp/tutorial_element.jh5"

# Save a single element
repository.write_worksheet_element(element_id, element_path)
print("write_worksheet_element: done →", element_path)

# # Load the element from file
# loaded_element = repository.read_worksheet_element(element_path)
# print("read_worksheet_element:", loaded_element)

write_worksheet_element: done → C:/tmp/tutorial_element.jh5
